Pyroguard Protect

Fire duration EW30 – EW120 & EI30 – EI180

Product type Toughened

Thickness 13 – 82 mm

Weight 29 – 180kg/m²

Acoustic dB 37 – 47 dB

Impact protection 1B1

Light transmission 71 – 88%

U-value 4.8 – 3.4 W/m²K

Temp Range -10 – 45℃

Pyroguard Protect: Enhanced performance glass

Classification: EW & EI

Fire Resistance: 30, 60, 90, 120 and 180 minutes

A range of toughened fire safety glass which provides integrity and heat insulation for 30 to 120 minutes (EW Classification) and 30 to 180 minutes (EI Classification). The solutions provide 1B1 impact classification offering high performing acoustic properties and UV stability.

Select an option below:

Application

Certification

Features

Benefits

Available in 13, 18, 25, 26, 32, 47 and 82mm thicknesses
Internal and external applications
Single glazing
Can be optionally laminated or used in an IGU for additional performance requirements
Certified in steel, timber, PVC and aluminium profiles
Usable as a single frame, glazed screen, curtain wall, single door and double doors

EW & EI – insulation
30, 60, 90, 120 and 180 minutes
Fire tested to BS 476: Part 22:1987 and BS EN 1363-1
CE Marked by Efectis, France
Conforms to EN 12150-1 requirements for thermally toughened soda lime silicate safety glass
Impact classification to EN 12600:2002 – 1B1
Complies with EN 14449 standards for laminated safety glass

EW & EI classification
Bespoke solution
Laminated glass
Up to 180 minutes of fire resistance
Toughened with option of heat soak
UV stable

EI fire performance gives the best protection for people and property
Engineered to meet your specific project requirements
Meet 1B1 impact standards without the use of additional counterpanes
Simple to specify for the widest possible range of projects
Peace of mind throughout the lifespan of the product due to UV stability

Case studies

TX Building at Strijp-T, The Netherlands

Product: Pyroguard Protect

Location: The Netherlands

View all

Belfast Grand Central Station, Northern Ireland

Product: Pyroguard Protect

Location: Ireland

View all

Goodlife, Issy-les-Moulineaux, France

Product: Pyroguard Protect

Location: France

View all

King Abdullah Financial District, Saudi Arabia

Product: Pyroguard Protect

Location: Saudi Arabia

View all

Royal Caribbean’s ‘Wonder of the Seas’, France

Product: Pyroguard Marine

Location: France

View all

AMC Hospital, The Netherlands

Product: Pyroguard Rapide, Pyroguard Protect

Location: The Netherlands

View all

TRIBE Hotel, Manchester

Product: Pyroguard Protect

Location: UK

View all

Willibrordschool, Rotterdam

Product: Pyroguard Protect

Location: The Netherlands

View all

Schiphol Airport, The Netherlands

Product: Pyroguard Protect

Location: The Netherlands

View all

Deanston Wharf, London

Product: Pyroguard Balustrades Evo

Location: UK

View all

Nagyvarad Square, Budapest

Product: Smokeguard

Location: Hungary

View all

Academy Tien, The Netherlands

Product: Pyroguard Protect

Location: The Netherlands

View all

Van der Valk Hotel – Best

Product: Pyroguard Protect

Location: The Netherlands

View all

Aimé Césaire Airport, France

Product: Smokeguard

Location: France

View all

Audley Village, UK

Product: Pyroguard Infinity

Location: UK

View all

ESB Fitzwilliam Street, Ireland

Product: Pyroguard Protect

Location: Ireland

View all

Oslo Airport, Norway

Product: Pyroguard Protect

Location: Norway

View all

Commercial Office, Hyderbad

Product: Pyroguard Protect

Location: India

View all

Kiruna Hotel, Sweden

Product: Pyroguard Protect

Location: Sweden

View all

Depot Boijmans Van Beuningen, The Netherlands

Product: Pyroguard Protect, Attackguard

Location: The Netherlands

Pyroguard Protect pivotal in creation of award-winning art facility

View all

Greenwich Millennium Village, UK

Product: Pyroguard Balustrades Evo

Location: UK

View all

Uppsala Stadshus, Sweden

Product: Pyroguard Protect

Location: Sweden

Our latest renovation project has seen the Uppsala Town Hall in Sweden transformed, incorporating functionality and aesthetic design – the result of a great working relationship with Fasadglas.

View all

Convento P.P Capuchinos San Antonio de Padua

Product: Pyroguard Protect

Location: Spain

Pyroguard’s technical expertise recently proved vital on the regeneration of the Capuchino Convent de San Antonio de Padua in Spain; a project which required a careful balance between renovating the historic building, ensuring modern fire safety regulations were met and being respectful of the Convent’s heritage.

View all

Campus Sud des Métiers, Nice

Product: Pyroguard Infinity

Location: France

Pyroguard Infinity was specified for this educational facility in France – helping to create bright and open spaces.

View all

Central Public Works Department, New Delhi

Product: Pyroguard Protect

Location: India

Working on prestigious government projects is always exciting, like the government building we worked on recently with the Central Public Works Department and framing partner M/s. Sukriti Doors in New Delhi, India.

View all

Hekla Tower, Paris

Product: Pyroguard Protect

Location: France

Standing 220 metres high in Paris’ major business district, La Defense, is the new Hekla Tower – a striking building with a unique appearance.

View all

Quantock House, UK

Product: Pyroguard Balustrades Evo

Location: UK

Pyroguard’s fire safety glass was the product of choice on the Quantock House development, one of the first UK projects to feature a compliant A2-s1 glass balustrade system on its apartment balconies.

View all

Campus Lelystad, The Netherlands

Product: Pyroguard Protect

Location: The Netherlands

Pyroguard’s range of toughened fire safety glass was specified throughout Campus Lelystad in The Netherlands – a beautiful school campus, consisting of six interconnected buildings in a striking circular formation.

View all

Emudhra, Bangalore

Product: Pyroguard Protect

Location: India

Pyroguard’s range of toughened fire safety glass, Pyroguard Protect, was recently installed inside Bangalore’s new commercial offices, Emudhra.

View all

Hangar 5, Stockholm

Product: Pyroguard Protect

Location: Sweden

Pyroguard’s toughened fire safety glass played a vital role throughout the development of Stockholm’s new commercial hub, Hangar 5.

View all

Horgan’s Quay

Product: Pyroguard Infinity

Location: Ireland

With glass an ever-popular building material, Pyroguard has helped to combine contemporary aesthetics with fire safety and sympathetically blend the old with the new on an exciting regeneration project in Cork, Ireland.

View all

Tours Duo, Paris

Product: Pyroguard Protect

Location: France

Engineered to meet specific project requirements, Pyroguard’s range of toughened fire safety glass, Pyroguard Protect, in E30, EI60 and EI120, has been specified for one of the most daring architectural creations ever imagined in Paris: Tours Duo.

View all

Gulf Bank Headquarters

Product: Pyroguard Protect

Location: Algeria

Pyroguard provides a multi-functional solution for Algeria Gulf Bank Headquarters

View all

Angers ICEPARC

Product: Pyroguard Protect

Location: France

Pyroguard Protect ticks all of the boxes for new state-of-the-art ice rink

View all

Gare Saint-Jean Train Station

Product: Smokeguard

Location: France

We recently supplied our zero-maintenance glass smoke control solution, Smokeguard, to Gare Saint-Jean, the main train station in Bordeaux, France.

View all

Windsor Group IT Park

Product: Pyroguard Protect

Location: India

Manufactured to a bespoke specification, Pyroguard’s range of toughened fire safety glass, Pyroguard Protect, was recently installed inside the impressive IT Park

View all

Nuestra Señora del Pilar

Product: Pyroguard Protect

Location: Spain

Pyroguard supports refurbishment of Nuestra Señora del Pilar a Psychosocial Rehabilitation Centre

View all

Dublin Landings

Product: Pyroguard Protect

Location: Ireland

Keeping projects on track

View all

Coal Drops Yard, Kings Cross

Product: Pyroguard Protect

Location: UK

Breathing new life into historic buildings

View all

Telecommunications HQ

Product: Pyroguard Firesafe

Location: India

Breathing new life into office space

View all

Marr College

Product: Pyroguard Firesafe, Pyroguard Rapide Plus, Pyroguard Protect

Location: UK

Delivering a modern solution for a historic building

View all

Biomedicum

Product: Pyroguard Firesafe

Location: Sweden

Combining practicality and aesthetics to create a world-renowned research facility.

View all

Vivanta by Taj, Dwarka

Product: Pyroguard Firesafe

Location: India

Pyroguard delivers five star service to luxury Indian hotel

View all

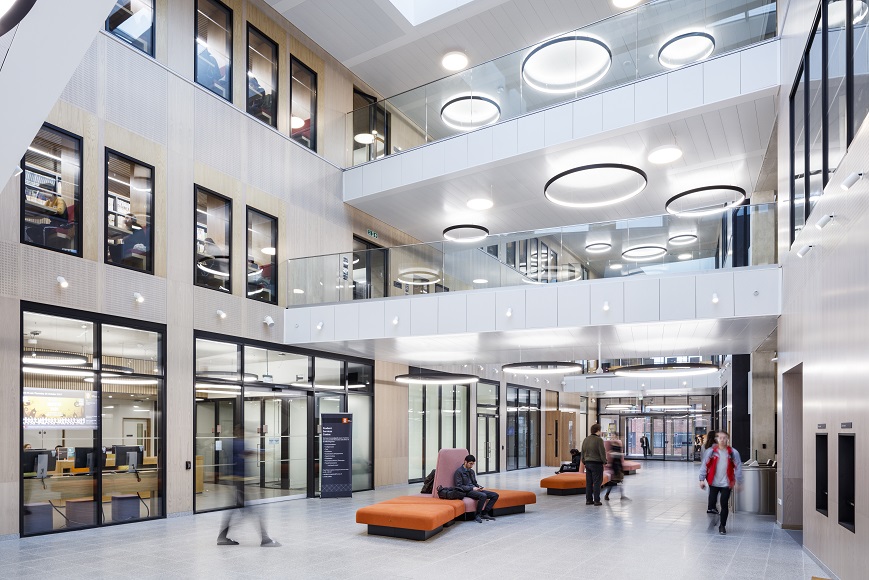

Royal Holloway University of London
